Davis-Standard Product Line
Blown Film Systems

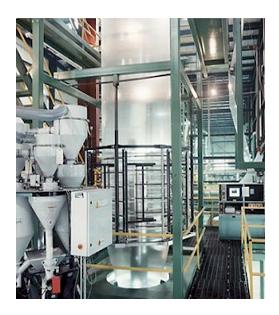

Davis-Standard Bubble Cages
- 6 LEVEL BUBBLE STABILIZING CAGE
- The cage is unique in its ability to maintain circularity as it changes diameter, assuring full contact and uniform cooling over the full range of adjustment.
- The stabilizing cage is fitted with six sets of support rings with a wide range capable of providing full support over the entire layflat range.
- Electrically powered adjustment of cage diameter. Includes Motor, controls and appropriate limit switches.
- Motorized elevating mechanism to accommodate the vertical positioning of the cage.
- Unit is to be fabricated in such a way to allow for simple installation between the tower legs.

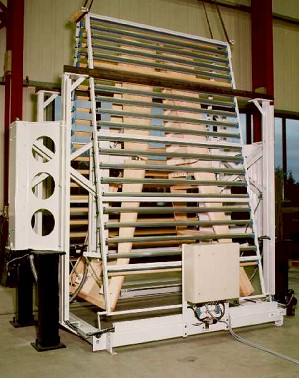

Davis-Standard Roller Collapsing Frame
- Collapsing Frame - Aluminum Rolls
- Manually adjustable frame angle
- Steel framework having aluminum rolls
- Mounted to upper nip roll assembly, one side linked to movable nip roll

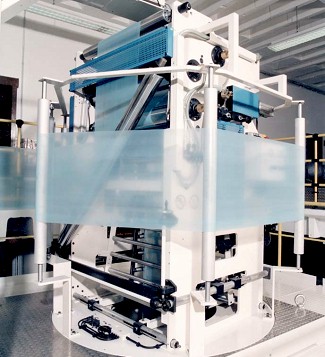

Davis-Standard Oscillating Nip Assembly
- ROLL FACE, OSCILLATING PRIMARY NIP
- Nip roll assembly consisting of a rubber roll and a steel roll (chrome plated suitable for cooling)
- Pneumatically actuated rubber and chrome nip rollers are precision machined and dynamically balanced.
- Deviation of collapsed film web via vertical turning bars.
- Air blowers for turning bars.
- The oscillation drive by geared motor with remote control, the reversing time is infinitely variable.
- Mounting bridge to take the oscillation gear box, the turning bars, and the nip rolls.
- Includes (1) set column mount consisting of a sturdy welded construction with cross ties.
- Automatic home positioning during start up

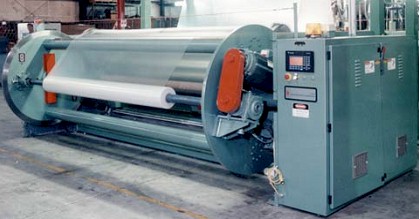

Davis-Standard Horizon Turret Winder
Horizon Turret Winders feature a modular design for multiple configurations and are capable of 24-inch (600 mm), 30-inch (750 mm), and 40-inch (1000 mm) roll diameters in a variety of widths. Features include a linear horizontal lay-on roll, touch screen controls, a short web path, automatic cut/transfer, transducer web control, and AC drive units.

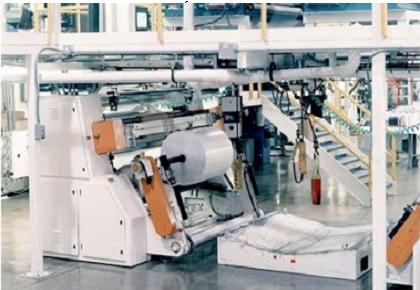

Davis-Standard PAC50 Surface Winder
PAC Surface Winders are capable of 40-inch (1015 mm) roll diameters. These winders feature transducer controlled DC drives, automatic cut/transfer systems, and expander rolls and slitter stations. The PAC 45 has a pneumatically actuated assembly and optional unloading assembly; the PAC 50 has a hydraulically operated pressure arm assembly and is equipped with a motorized shaft magazine for multiple shaft preparation.

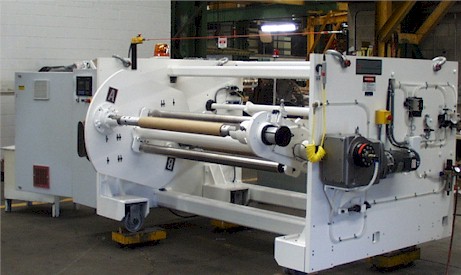

Davis-Standard Model 1000 Turret Winder with Special Roll Handling
Model 1150 Winder Designed for 30-inch (750 mm) roll diameters, the high-quality, moderately priced Model 1150 is capable of winding speeds of 50 to 250 feet/minute and features an integral lower nip, in-line slitting for multiple rolls and phantom axis turrets. Sizes range from 44-inch (1100) to 124-inch (3100 mm). Winders also have the option of roll handling features to automate the roll handling operation.

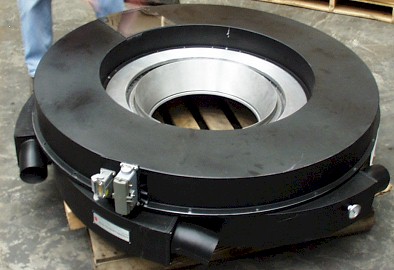

Davis-Standard WesJet AutoPro Auto Profiling Air Ring
- Integrates a high performance air ring with segmented air flow control technology.
- User friendly measurement & control from Plastcontrol.
- Motorized actuators adjust air volume to segments.
- Narrow band action on film. One air stream has small effect on adjacent air streams as compared to heated lip segmentation.

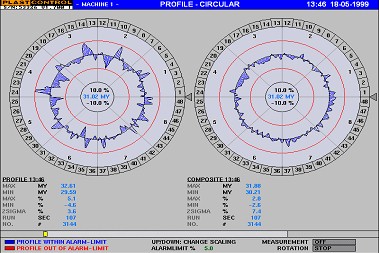

Bubble profile for the WesJet AutoPro Auto Profiling Air Ring.
Davis-Standard Mono and Coex Extrusion Lines
Davis-Standard Mono Extrusion Blown Film Line
Davis-Standard offers a complete line of processing equipment and systems for both monolayer and multi-layer blown film applications. Davis-Standard supplies customized systems ranging from monolayer LDPE film machines for bags, to high-speed LLDPE stretch wrap, multi-layer barrier packaging and laminating film machines. These systems are capable of processing a wide range of films including LDPE, LLDPE, HDPE, EVA, EVOH, PVC, TPU and PVDC. Coextrusion capabilities for 3-layer, 5-layer and 7-layer configurations are also available. Davis-Standard's blown film technical center in Somerville, New Jersey, USA, is equipped with a blown film demonstration line capable of testing coextrusion configurations up to seven layers. Davis-Standard also has blown film manufacturing facility at ER-WE-PA Davis-Standard in Erkrath, Germany, to service its European customer base. Davis-Standard's blown film systems are used for applications in the agriculture, automotive, construction, furniture/carpeting, packaging and film, personal care and medical markets. End products include: stretch films, shrink films, multi-wall bags, cereal liners, medical and food packaging, agricultural and construction films, and barrier packaging shipping sacks.

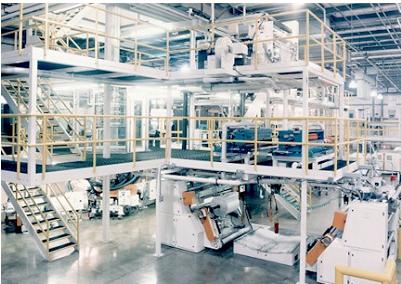

Davis-Standard Coextrusion Blown Film Line

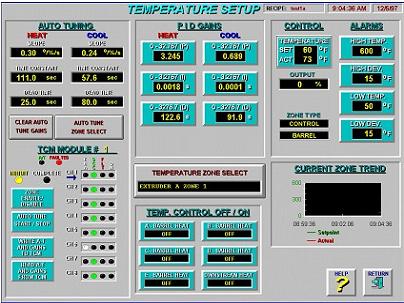

Davis-Standard Epic III Windows-Based Control System
EPIC III is a Windows based multi-tasking touch screen extrusion process control system offering graphical interface with custom designed screens and reports, unlimited recipe storage and complete management capabilities.
